Under-Drains / ION EXCHANGE
INTERNALS & Laterals
Available as both Header Lateral and Hub Lateral assemblies, Federal Screen wedge wire screen laterals and pipe based laterals can be connected to distributor headers and spider hubs by standard NPT thread, fabricated flange, ANSI connections, and can be offered as fully welded assemblies.
Specifications
Headers
Hubs
Spool assembly
Intake assembly
Pipe laterals
Screen laterals
Custom designs.
304/304L
316/ 316L
321
410S
Hastelloy C-276
Duplex
Super Duplex
Alloy B3
Monel 400
Alloy 20
Suited for side mounted, top/bottom mounted vessels, custom spool assemblies can be designed to suit specialty vessels/systems.
Multiple configurations
Filter solutions under-drain assemblies for sand filters, carbon filters, and ion exchange units are offered seen in multiple layouts and configurations. Laterals are available in all standard pipe and tube diameters for both Header Lateral and Hub Lateral type of assemblies.
For the most demanding applications
The combination of both wedge-wire having its unique internal support rod structure and ability to be constructed out of stainless steel or many exotic alloys, makes it an easy choice when designing an under-drain system. Incorporating these factors has resulted in a higher collapse strength allowing the design to handle most demanding load applications. Header-Lateral or Hub-Lateral Collector/Distributors fabricated with wedge wire has been seen as a superior option for retaining media in vessels of all types.
Main reason being that wedge wire offers a continuous slot, more open area, precision slots offered (up to 0.002+/- tolerance), and stronger, more durable, reduction in clogging and reduce media abrasion.
Benefits of our Under-Drains & Ion Exchange Internals include:
Continuous slot design provides increased open area for better collection
Highly resistant to plugging Stronger and more durable then mesh
Choices of fitting types and sizes are available from standard or custom styles
Design flexibility
High-precision slot sizes slot sizes are available to meet customer's requirements
Economy built into designs making them less expensive than other screen
Resistant to extreme pressure and temperature variances as well as corrosion
(depending on the material selection)
Download 3D PDF:

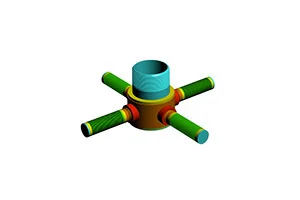

Hub and Wedge Wire Lateral
Requires Adobe Acrobat for 3D functionality. If the display screen is blank after clicking the download button, on the top right menu bar, hit “download”.
Download 3D PDF:

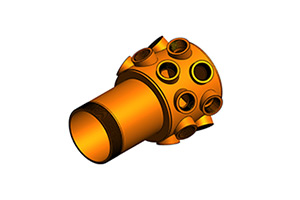

Hub
Requires Adobe Acrobat for 3D functionality. If the display screen is blank after clicking the download button, on the top right menu bar, hit “download”.
Download 3D PDF:

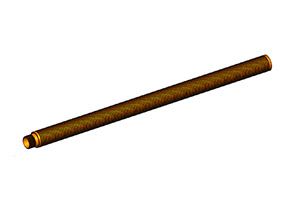

Pipe Based Lateral
Requires Adobe Acrobat for 3D functionality. If the display screen is blank after clicking the download button, on the top right menu bar, hit “download”.
Download 3D PDF:
Inlet Assembly
Requires Adobe Acrobat for 3D functionality. If the display screen is blank after clicking the download button, on the top right menu bar, hit “download”.
Download 3D PDF:
Regen Assembly
Requires Adobe Acrobat for 3D functionality. If the display screen is blank after clicking the download button, on the top right menu bar, hit “download”.
Typical Industries for use
Product Quote
Once we receive your request we will contact you within 48 hours.

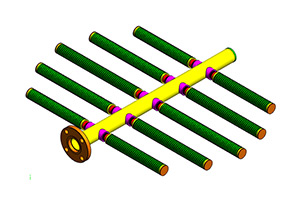

Headers
Headers and Laterals are available in all types of standard and nonstandard pipe/tube sizes adapting to new and current systems.

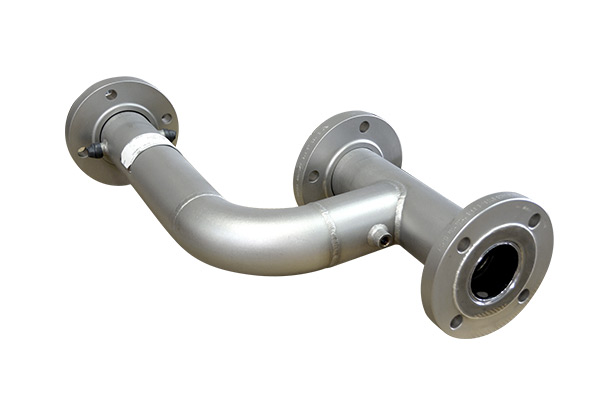

Spools
Wedge wire screen has long been considered the most effective media for uses in underdrains/ion exchange systems due to wedge wire having an inherent even pattern of open area that allows for accurate flow distribution.

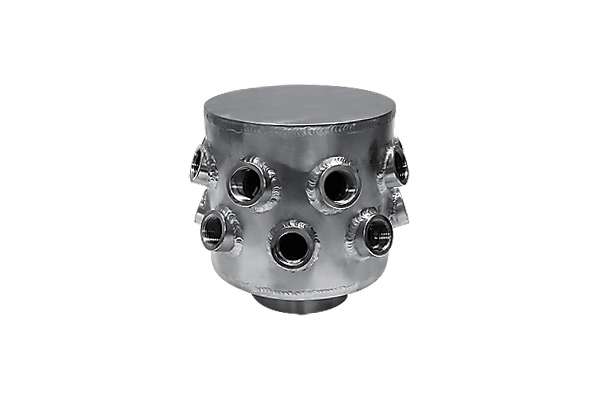

Standalone Hub
Each system is designed specifically for your application which serves both as a collector of down-coming service flow and a distributor of incoming backwash water.

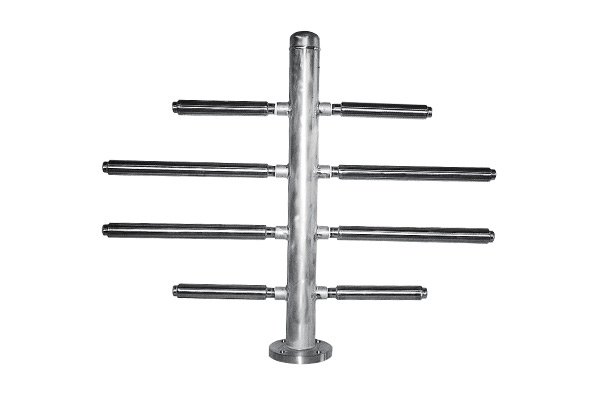

Hub & pipe base laterals
Laterals can be connected to distributor and drain headers by fabricated custom bolt patterns, standard NPT thread, flanged, ANSI connections or welded as one assembly.

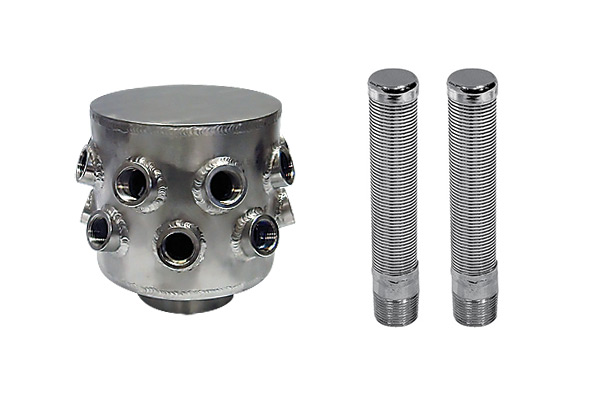

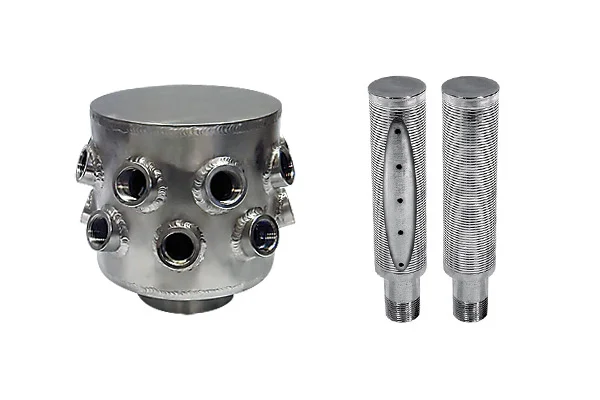

Hub & Screen laterals
Each system is designed specifically for your application which serves both as a collector of down-coming service flow and a distributor of incoming backwash water.
Pipe base laterals
Laterals can be connected to distributor and drain headers by fabricated custom bolt patterns, standard NPT threaded flanged, ANSI connections or welded as one assembly.

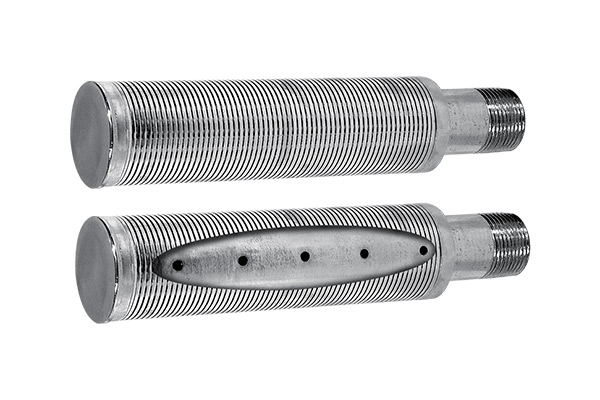

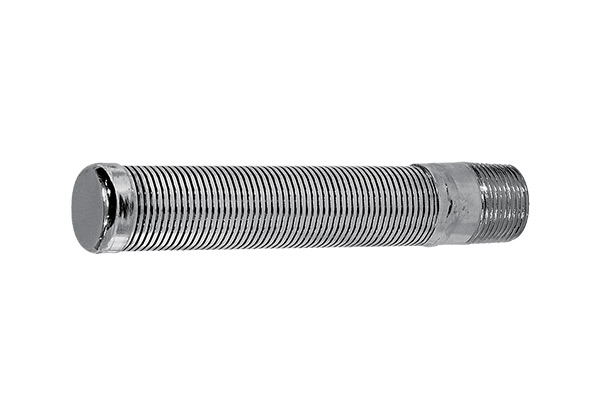

Screen laterals
Laterals can be connected to distributor and drain headers by fabricated custom bolt patterns, standard NPT threaded flanged, ANSI connections or welded as one assembly.

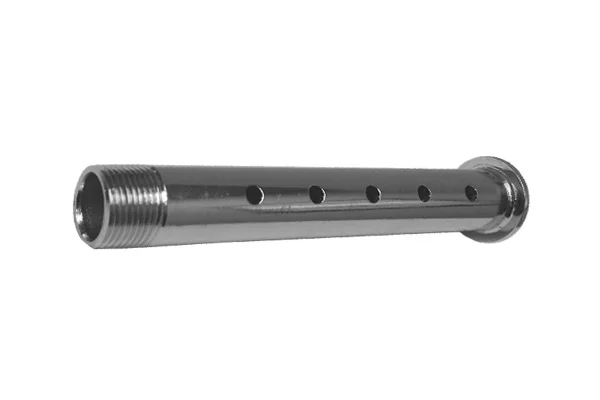

Pipe lateral
Laterals can be connected to distributor and drain headers by fabricated custom bolt patterns, standard NPT threaded flanged, ANSI connections or welded as one assembly.
Can't find the Under-Drain you need?
We specialize in custom manufacturing. Our sales, engineering and production teams have the experience to manufacture what you need to the highest degree of excellence. Keeping all work in house allows us to offer accuracy and consistency.
